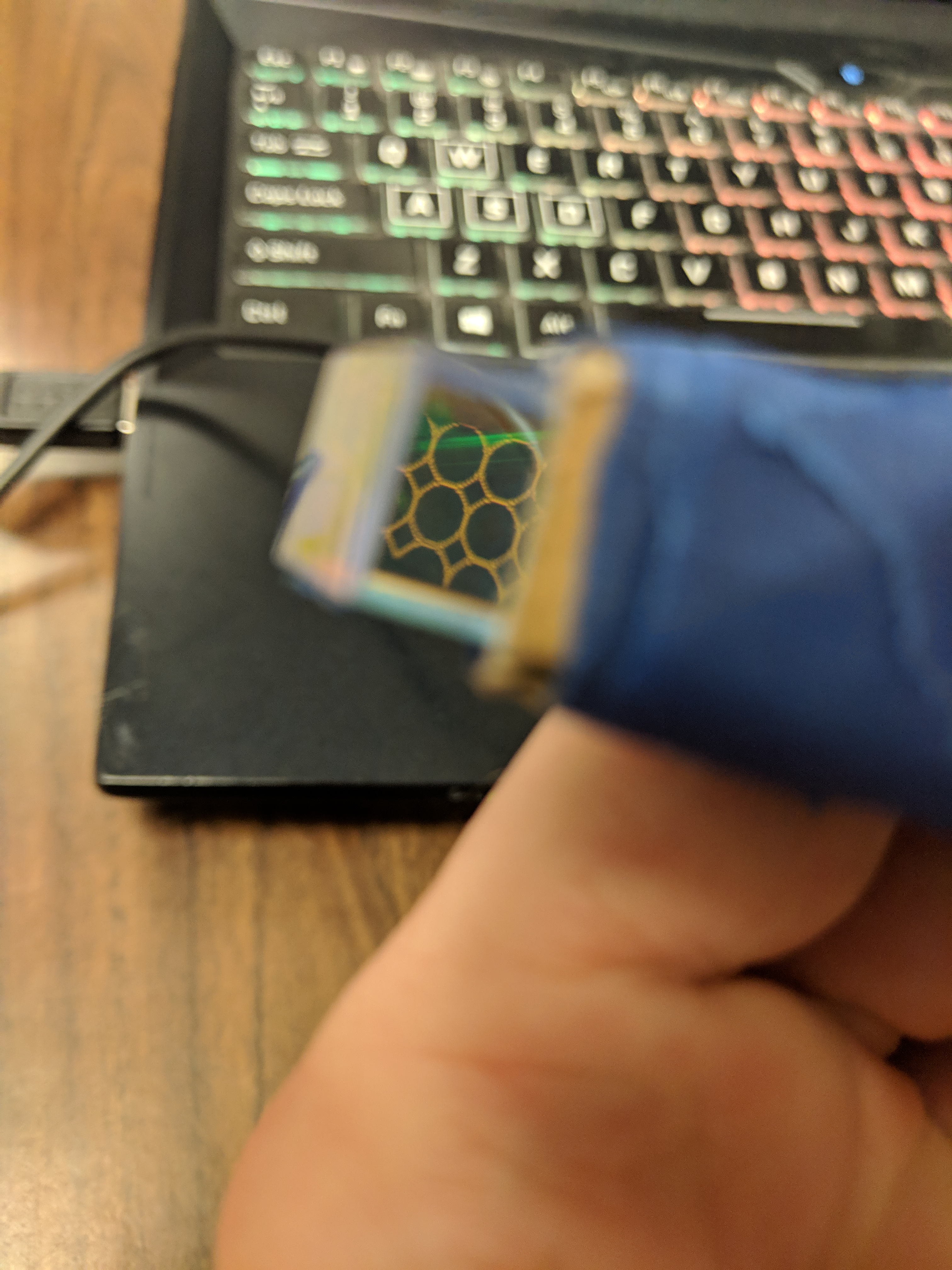

This is a heads up display that I designed for my ongoing senior design project. When the prism is held up to the eye it looks as if a display is floating in space in front of the user. This is a rough draft version that is held together with cardboard and tape. I’m currently working on designing a 3D printed housing for it. The project is a real-time biometric data collection and display system for glasses

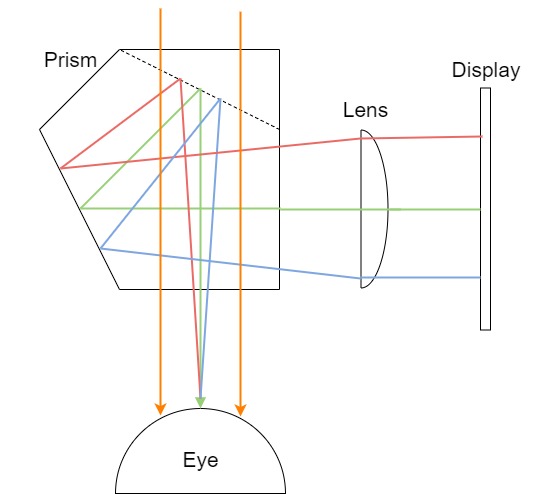

This top-down diagram I made demonstrates how the optics of the system work.
